Understanding the Differences Between VFDs and Transformers for Specialized Machinery

Variable Frequency Drives (VFDs) and transformers are two distinct components used in industrial applications. While they both play crucial roles in managing electrical power, they serve different functions and have unique characteristics.

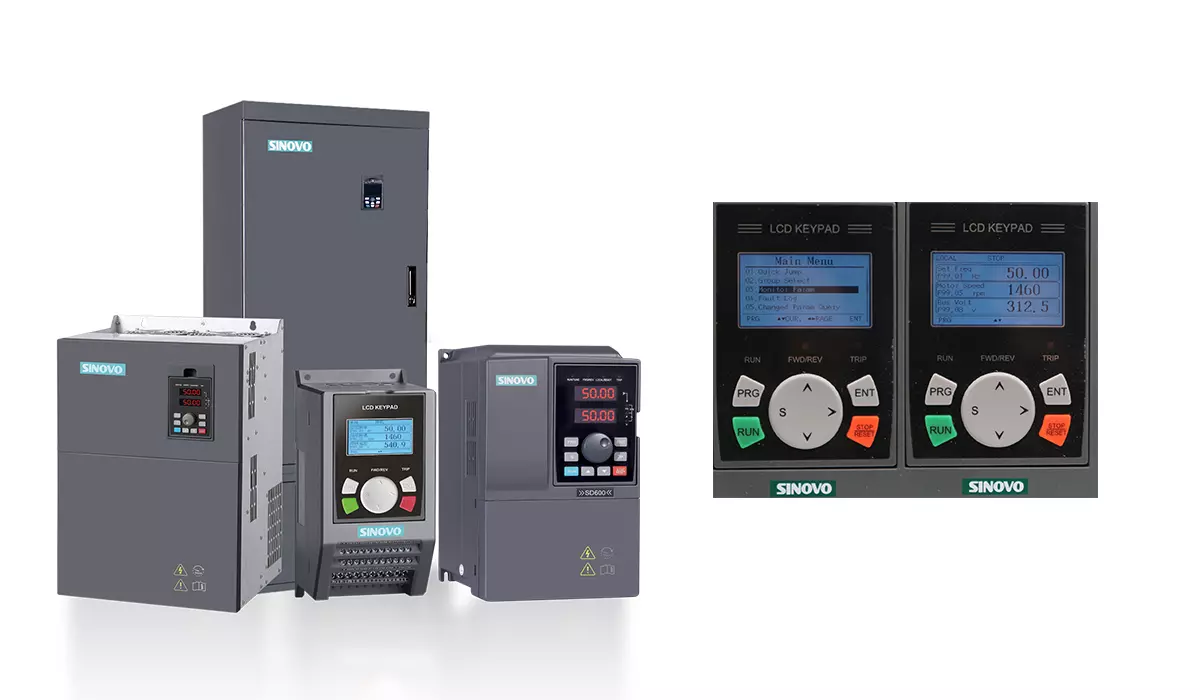

VFDs (Variable Frequency Drives):

Purpose: VFDs are designed to control the speed and torque of an electric motor by adjusting the frequency and voltage supplied to it. This precise control enables machinery to operate more efficiently, saving energy and reducing wear and tear.

Voltage Transformation: Unlike transformers, VFDs do not directly transform voltage. Instead, they alter the frequency and voltage output to the connected motor.

Frequency Control: VFDs are known for their ability to provide variable frequency output, making them ideal for applications requiring speed adjustments. They allow machinery to start slowly, ramp up to full speed, and even operate at multiple speeds as needed.

Energy Efficiency: VFDs can significantly improve the energy efficiency of equipment. By adjusting motor speed to match the required load, VFDs help reduce energy consumption, particularly in applications where motors often run at partial load.

Harmonics: VFDs can introduce harmonic distortion into the electrical system. Nevertheless, you can reduce this through suitable filtering and the implementation of other harmonic control methods.

Applications: Industries such as HVAC, conveyor systems, pumps, and fans commonly employ VFDs. In these sectors, precise motor control and energy efficiency hold paramount importance.

Transformers:

Purpose: The primary function of transformers is altering the voltage level of electrical power. They have the capacity to either step up (increase) or step down (decrease) voltage, which facilitates the transmission of electricity over extended distances and its secure utilization in various applications.

Voltage Transformation: Transformers are exclusively designed for voltage level adjustment. They encompass primary and secondary windings, enabling the conversion of voltage to ensure the provision of the appropriate voltage to electrical equipment.

Frequency Control: Transformers do not provide frequency control. They maintain the frequency of the input power and solely focus on voltage transformation.

Energy Efficiency: Transformers are highly efficient in transferring electrical power from one voltage level to another. They are not, however, involved in the active control of power consumption.

Harmonics: Transformers do not introduce harmonic distortions into the electrical system. They are typically passive devices with no electronic components that could generate harmonics.

Applications: Transformers are indispensable in power distribution networks, industrial settings, and various electrical systems where voltage conversion is needed.

When to Choose VFDs or Transformers for Specialized Machinery:

The choice between VFDs and transformers depends on the specific requirements of the application:

If you need precise motor control, energy savings, and the ability to adjust motor speed, VFDs are the way to go. They are suitable for machinery where variable speed and torque control are crucial.

On the other hand, if your primary concern is the adjustment of voltage levels to align with equipment requirements, transformers are the suitable choice. They commonly find application in scenarios that necessitate voltage conversion, including the step-up or step-down of power for various uses.

In some situations, a combination of both VFDs and transformers may be employed in a system to concurrently achieve the desired voltage transformation and motor control.

Understanding the fundamental differences between VFDs and transformers is essential for selecting the right components to meet the unique needs of specialized machinery. Making the correct choice can lead to increased efficiency, cost savings, and improved performance in industrial applications.
