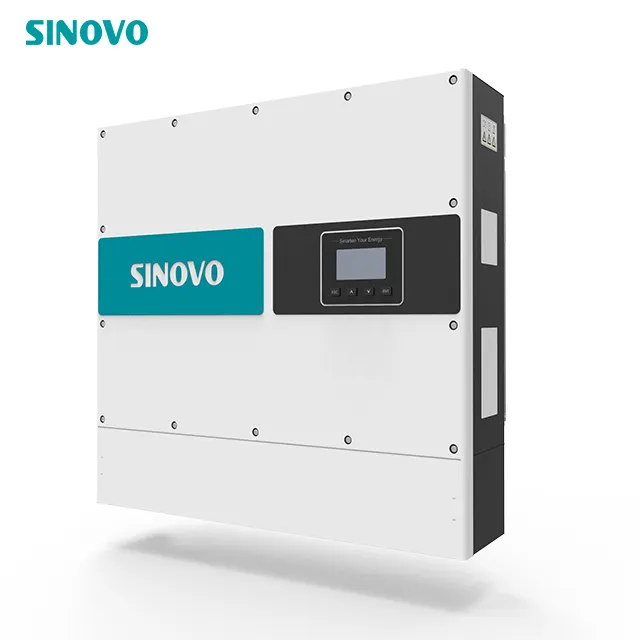

SE300 RS485 RS232 WIFI GPRS IP65 On and Off Grid Inverter Solar Hybrid Inverter for Home Use Solar Storage Inverter

  • Integrated design of photovoltaic energy storage inverter.
  • Both grid-tied and off-grid functions.
  • Work without battery at daytime.
  • Lead-acid cell or lithium cell is optional.
  • Max efficiency more than 97.6%.
  • Dual MPPT tracking, MPPT efficiency more than 99.9%.
  • ZCT soft switch technology, low less.
  • IP65 protection level, and suitable for outdoor use,
  • Support RS485, RS232, WIFI, GPRS multiple communication code.
  • Fan less design, noise less than 25db.
  • 21 kinds of protection functions, safe and reliable.
  • 5 years warranty, and 25 years repair time.

Product Detail

Essential details
  • Place of Origin: Guangdong, China
  • Model Number: SE300-5048
  • Output Voltage: 125~550Vdc or 220Vac/240Vac
  • Output Frequency: 50HZ/60HZ
  • Size: 595mm*539mm*295mm
  • Inverter Efficiency 99.7%
  • Warranty: 5 years
  • Product name: MPPT Hybrid Solar Inverter
  • Display: LCD Display
  • Protection: IP65
  • Keyword: solar inverter hybrid
  • Start Voltage: 120-150Vdc
  • Brand Name: SINOVO
  • Input Voltage: Max 580VDC / 220VAC
  • Output Current: 100A
  • Output Type: Single
  • Type: DC/AC Inverters
  • Certificate: CE/TUV
  • Weight: 35KG
  • Application: Home Solar System
  • Output waveform: Pure Sine Wave Output
  • Rated power: 5000W
  • Communication: RS232/RS485/CAN/ WIFI
  • OEM: Accepted
Product Introduction:

A newly designed solar and energy storage hybrid inverter, capable to install in on-grid solar, off-grid solar and back-up systems. Hybrid enables a programmable and schedulable smart solar energy storage system to help increase your solar energy self-consumption rate, protect your home appliances from grid shortage, and balance your energy usage strategy to save energy bill.

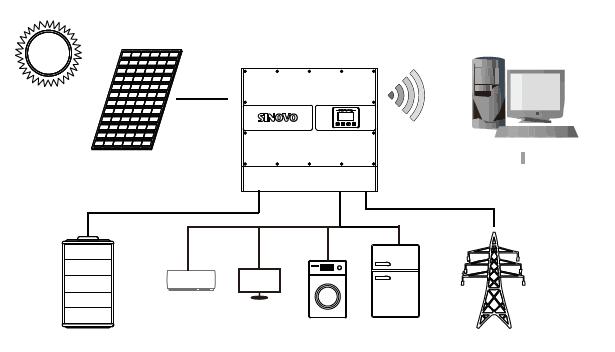

system-diagram
Product Specification:
Model #
SE300-5048
General parameters
Size(mm)
595*539*205
Net/ Gross Weight(kg)
32/35kgs
Installation method
Wall-mounted
Ambient temperature
-30~60℃
Relative humidity
0~95%
Working elevation
<3000
Protection level
IP65
Standby power consumption(W)
<5W
Cooling method
Natural cooling
Noise(dB)
<25
Display
LCD&APP
Communication
CAN,WIFI,RS485,RS232
Warranty
5
DC switch
integrated
PV input
Max DC input power
6000W
Rated DC input power(W)
5000W
Maximum DC input voltage(V)
580
MPPT Voltage range(V)
125~550
Start-up Voltage(V)
125
Max input current(A)
11/11
MPPT channels
2
DC input channels
2
Battery
Battery types
Lead acid, lithium battery.etc.
Input voltage(V)
48(40~70)
Maximum charge and discharge electric power (W)
5000W
Maximum charge and discharge current(A)
110
battery capacity(AH)
50~200
charging method
2-stage / 3-stage
On-grid Output
Maximum input/output power(W)
6000W
Maximum input/output current(A)
20
UPS(Resistive load)
Yes
Rated output voltage(V)
220/230 180V~270Vac
Rated output frequency(Hz)
50/60
Power factor
0.99, 0.8 lead ~ 0.8 lag
THDi
<3%
Grid type
Single phase
Off-grid Output
Maximum output power(W)
5000W/4600W(DE)
The output voltage(V)
230Vac/220Vac (±2%)
Rated output frequency(Hz)
50/60
THDv
<3%
Switch off network switching time
<5ms
Overload capability
5s@>150%;10s@110%~150%
Effectiveness
Maximum efficiency
97.6%
European efficiency
97.2%
MPPT efficiency
99.9%
Battery off-grid output efficiency
94.7%
Certificates and standards
Grid standard
VDE-AR-N 4105,VDE0126-1-1,G83/2,G59/3,AS4777.2/.3
Safety
IEC62109-1&-2,AS3100,IEC62040-1
Electromagnetic Compatibility
EN61000-6-1,EN61000-6-2,EN61000-6-3
EN61000-6-4, EN61000-3-11,EN61000-3-12,
