As a leading manufacturer of Variable Frequency Drives (VFDs), we understand the importance of efficient VFD commissioning. Proper commissioning ensures that VFDs operate optimally, offering energy savings and precise control over motors.

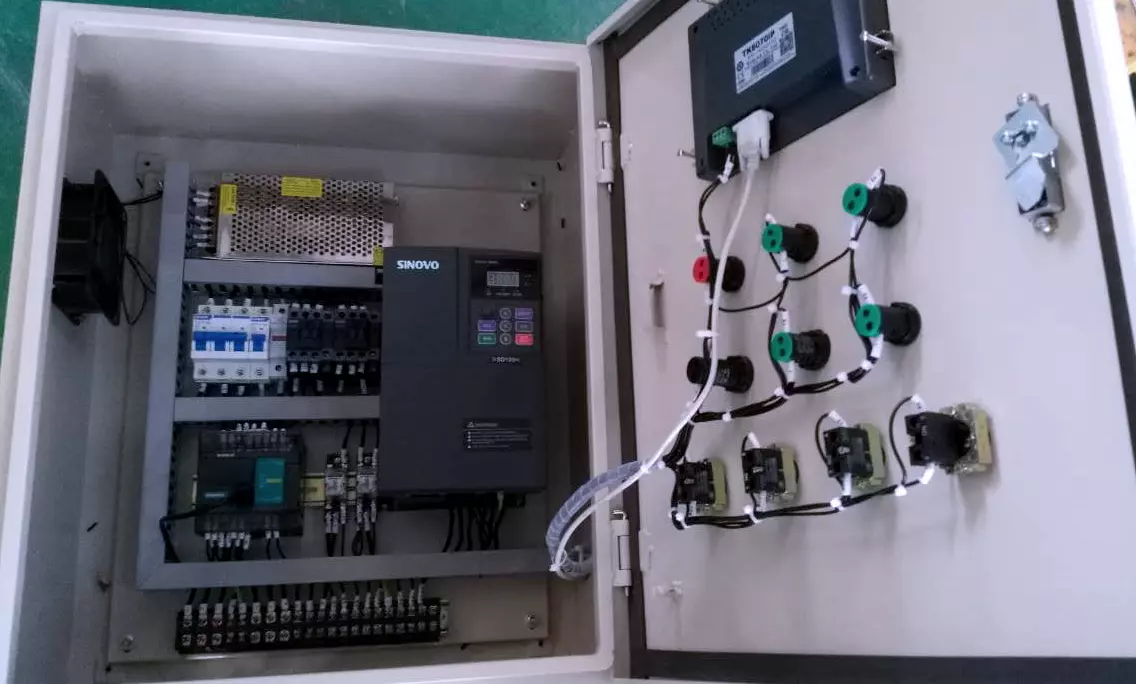

Step 1: Preliminary Checks
Before powering up your VFD, thorough preliminary checks are essential. First, ensure that all wiring is correct. It’s crucial not to connect the output terminal of the VFD to the motor at this stage. Start by reviewing the VFD’s user manual. Familiarize yourself with its functions, settings, and operation methods. With this knowledge in hand, you’re ready to power up the VFD.
The no-load test run serves two purposes. First, it helps you become familiar with the VFD’s keyboard and operating methods. Perform operations like forward, reverse, and stop, observing the VFD’s actions and temperature rise to ensure everything functions normally.
Second, use this test to acquaint yourself with related functions in conjunction with real-world scenarios. After configuring the settings, you can test the VFD’s basic functions, such as ramp-up and ramp-down time settings. Monitor external terminal signals to check if control actions are normal, like verifying if the output frequency of the VFD changes according to given signals.
Step 2: No-Load Testing with a Motor
With the no-load test run successful, it’s time to connect the VFD to the motor for a no-load test. Before connecting the motor, verify that the motor’s technical specifications meet the requirements. In this stage, do not load the motor. Allow the VFD to drive the motor, and observe its performance. Check if the motor’s rotation direction aligns with requirements.
Slowly increase the given frequency from zero to the maximum frequency. At the maximum frequency (typically 50%), let the motor run for a few minutes and monitor voltage and current values. Then, increase the frequency to the maximum while the motor continues running. Observe and record voltage and current values.
Afterward, reduce the output frequency to 75% or 25% of the maximum, run the motor, and then increase the output frequency again. Turn off the forward rotation switch to assess if the motor decelerates as expected. This process typically doesn’t require extensive parameter setting and can often use the default values preset by the manufacturer.
Step 3: VFD Running and Debugging with Load
Before starting the final phase, ensure there are no personnel around the load, and no foreign objects are near the load. Now you can proceed to load the VFD. Set a lower frequency and observe the load’s performance. Ensure that it runs smoothly without abnormal sounds during operation.
Pay attention to the torque of the VFD and monitor the current for any abnormalities. Generally, during startup with a load, the current torque is lower. However, as the VFD runs to a given frequency, the current torque stabilizes. After the load has gone through its running-in period, the torque current may decrease. If the VFD consistently operates at the rated value under a full load, it’s essential to assess if the VFD and motor selection match the load. If not, consider replacing them with models that better align with the load’s requirements.
Step 4: Fine-Tuning and Optimization
In this final step, fine-tune the VFD settings for optimal performance. Analyze the load characteristics and set a reasonable acceleration and deceleration time to ensure the VFD doesn’t report overcurrent during operation or startup.
It’s also recommended to explore advanced control features and strategies provided by the VFD, such as sensorless vector control, predictive maintenance, and remote monitoring. These capabilities can further enhance motor performance and energy efficiency.
Commissioning a VFD involves a systematic approach that includes preliminary checks, no-load testing, and load testing. When executed effectively, VFD commissioning ensures that your VFD operates at its best, contributing to energy savings, improved motor control, and longer equipment life. Proper commissioning is a crucial step toward harnessing the full potential of your VFD system and maximizing its benefits.
