SD600SCT 220V Single Phase to 380V Three Phase VFD

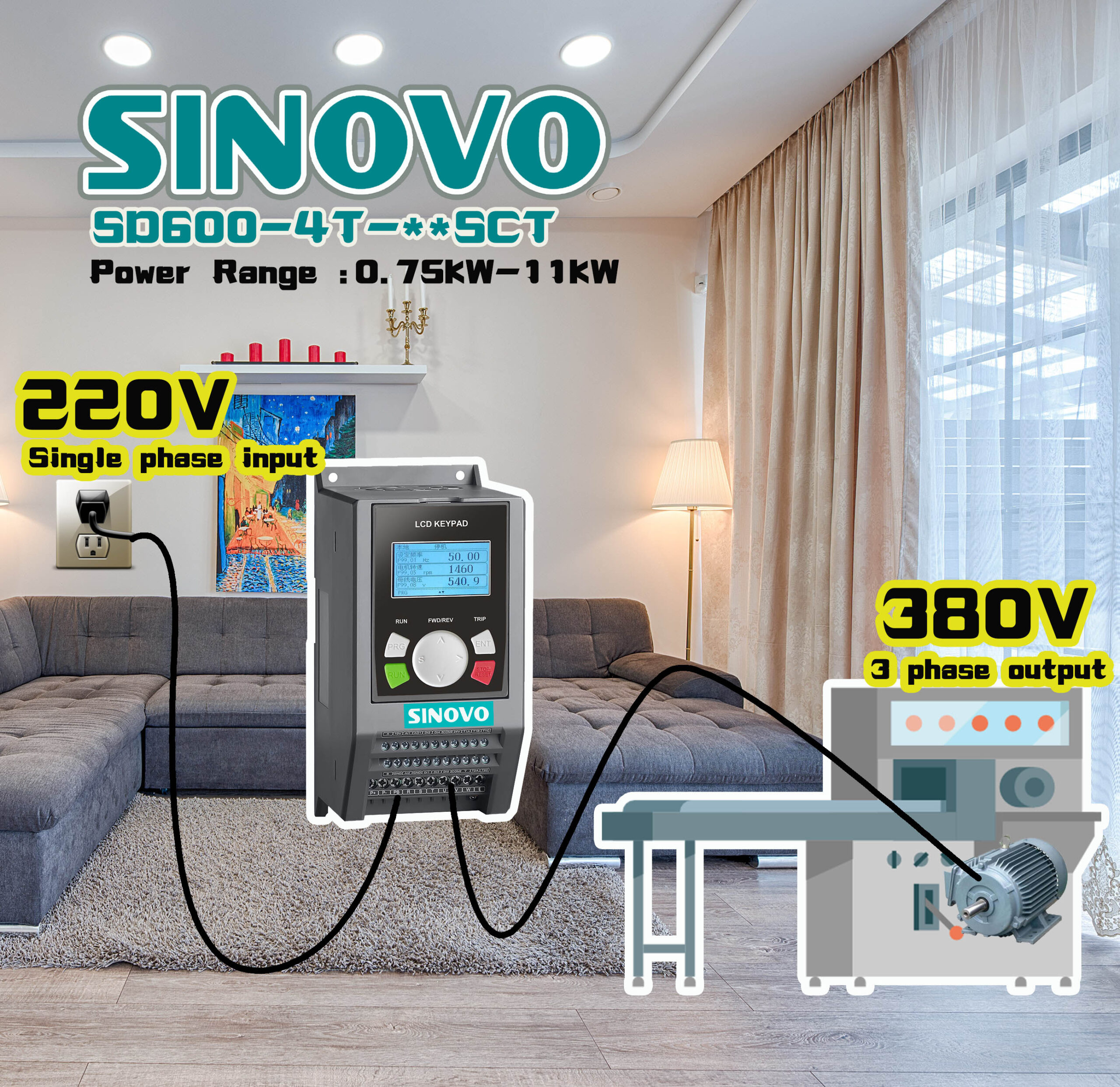

  • 220V single phase input, 380V 3 phase output VFD

  • High Speed Stability And Precision
  • Fast Current Limit
  • No Stop Under Instantaneous Power FailureFast Rotary Speed Tracking
  • Excellent Low Frequency Torque ControlOverexcitation Function
  • Suitable For Various ApplicationsHigh Accuracy,+0.5%(sVC),0.02%(FVC)

Are you tired of being limited to single phase power sources but need to power three phase equipment? Look no further than our 220V single phase input, 380V three phase output VFDs!

Our state of the art VFD technology allows for seamless single phase to three phase conversion, giving you the power and flexibility you need to run even the most demanding equipment. With our 220V input, 380V output VFDs, you can power everything from motors and pumps to HVAC systems and more.

Our 220V single phase to 380V three phase VFDs offer a wide range of benefits over traditional three phase power sources. Not only are they more cost effective and energy efficient, but they also offer improved precision and control, with variable speed and torque capabilities that allow for customized performance to meet your exact needs. Plus, our VFDs are designed with safety in mind, with built in overload and short circuit protection to ensure reliable and safe operation.

Whether you’re looking to upgrade your existing equipment or need a flexible and reliable solution for new projects, our 220V single phase input, 380V 3 phase output VFDs offer the perfect solution. Our VFDs are easy to install, operate, and maintain, with user friendly interfaces and intuitive controls that allow for seamless integration into your existing systems.

At our company, we pride ourselves on delivering the highest quality VFDs on the market. Our VFD 220V to 380V conversion technology is built to last, with robust construction and top of the line components that ensure reliable and efficient operation for years to come.

So why settle for limited power sources and inflexible equipment when you can have the flexibility and precision of our 220V input 380V output VFDs? Contact us today to learn more about our VFD single phase to three phase conversion technology and discover how we can help you power your equipment with ease and efficiency.

Product Detail

Essential details
  • Place of Origin: Guangdong, China

  • Model Number: SD600

  • Type: AC Drive, DC/AC Inverters

  • Size: different by models

  • Control Mode: VF&SVC& FVC Control

  • Nominal Voltage: 220V or 380V

  • Name: VFD Drive

  • Application: machine tool, textile, package,paper-making, pharmacy

  • Inverter type: Low Frequency Transformer Inverter

  • Control mode: VF&SVC& FVC Control

  • Protection: overcurrent protection,overvoltage protection
  • Brand Name: SINOVO
  • Warranty: 18 months
  • Certification: CE REACH RoHS
  • Customized: Yes
  • Rated Power: Depend on the models
  • Power Phase Number: single and 3 phase

  • Display: LED, LCD optional
  • HS code: 85044090
  • Certificate: CE ISO9001
  • Maximum Frequency: 500HZ

Software Features:

With Fast current limiting function to avoid frequent reporting of over-current faults.

Random PWM depth is adjustable, effectively suppressing motor noise.

VF overvoltage suppression and overcurrent suppression algorithm optimazation and improvement, faster and more accurate.

Rapid acceleration and deceleration control performance improvement.

SD600 use 640PID algorithm and optimizes.

Multi-speed PLC function optimization and increase PLC model 2.

Hardware Features:

30KW below power range are plastic shell structure.

Optimized cooling air ducts and stronger cooling fans ensure the device cooling characteristics.

The optional grounding function is added to deal with unreliable grounding sites.

Universal keypad also is copy keypad, which can realize the function of viewing modified parameters, parameter uploading, parameter downloading,etc.

Optional LCD keypad.
